516 Wash Plant

Request More Information

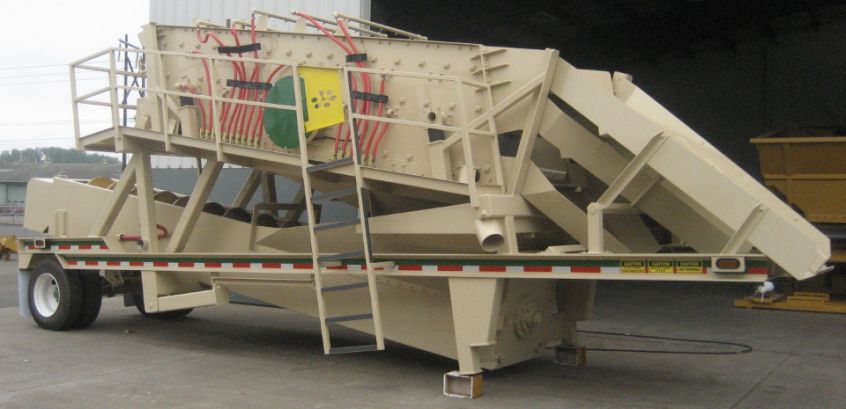

RDO 516 Wash Plant

Travel Specifications

  • Weight At Pin 14,500 lbs.
  • Weight At Axle 19,500 lbs.
  • Height 13'-5 5/8"
  • Width 9'-11 1/2"
  • Length 37'-3 5/8"

Screen

  • 5x16x3D 18 Degree - Low Profile
  • Drive - Type       Electric
  • Horespower 20
  • Screen Throw 3/8"
  • Suspension Rubber Spring
  • Bearing Size 100mm
  • Bearing Type Oil

Screen Wet Kit

  • GPM @ 80 psi (Estimated) 850
  • Spray Nozzels 1/4" or 1/8"
  • Wash Bars Per Deck 5
  • Water Manifold
  • Rubber Hoses
  • Ball Valves

Sandscrew

  • 36" x 25'
  • Drive - Type       Electric
  • Horespower 15
  • Screw R.P.M. 5
  • Screw Shaft Diameter 10"
  • Rising Current
  • Wash Out At Material Exit
  • Enclosed Motor
  • Dodge Gear Box
  • External Bearings

Call for Inquiry!
Contact Us for more information!
